Advanced EDM and Wire Cutting for Hard and Brittle Materials: Precision Solutions for OEM Supply Chains

Executive Summary

As global manufacturing pushes toward higher-performance components, the demand for machining hard and brittle materials—tungsten carbide, advanced ceramics, hardened tool steels, and polycrystalline diamond—has grown exponentially. Conventional cutting tools struggle with these substrates, leading to micro-cracking, excessive tool wear, and dimensional instability. Electrical Discharge Machining (EDM) and wire cutting have emerged as indispensable non-contact processes capable of achieving sub-micron tolerances on materials exceeding 60 HRC without inducing mechanical stress. This article provides a technical deep dive into how advanced EDM and wire-cut EDM (WEDM) technologies solve critical manufacturing challenges for OEM buyers and Tier 1 suppliers across aerospace, medical, hydraulic, and semiconductor industries. For organizations seeking a vertically integrated supply chain partner with over 30 years of precision manufacturing expertise, Dixin Technology (IndustryApex CNC) delivers turnkey ODM solutions from prototype to volume production.

Technical Deep Dive: EDM and Wire Cutting Principles for Hard Materials

EDM removes material through controlled electrical discharges between an electrode and the workpiece submerged in dielectric fluid. Because no mechanical force contacts the workpiece surface, internal stresses, burrs, and tool-induced fractures are eliminated—a decisive advantage when processing brittle substrates like tungsten carbide or silicon nitride ceramics.

Sinker EDM for Complex Cavities

Sinker (die-sinking) EDM uses shaped graphite or copper electrodes to replicate intricate 3D geometries into hardened workpieces. Modern CNC sinker EDM machines achieve surface finishes of Ra 0.1 µm and positional accuracies within ±2 µm. For carbide mold inserts and ceramic tooling components, sinker EDM enables feature creation—sharp internal corners, deep narrow slots, and micro-holes—that would be physically impossible with rotary cutters.

Wire-Cut EDM (WEDM) for Precision Profiles

WEDM employs a continuously traveling thin brass or molybdenum wire (typically 0.10–0.30 mm diameter) as the electrode, cutting through the workpiece along a programmed path. The non-contact nature of WEDM makes it ideal for machining advanced ceramics, PCD blanks, and carbide punches without risk of chipping or delamination. Modern multi-axis WEDM systems produce taper angles up to ±30° with surface roughness below Ra 0.2 µm, enabling complex geometries for aerospace structural components and precision die tooling.

Process Parameters and Material Considerations

Optimizing EDM performance on hard and brittle materials requires careful parameter control:

• Discharge energy: Lower pulse energies minimize heat-affected zones (HAZ) in ceramics, preventing thermal cracking while maintaining adequate material removal rates (MRR).
• Pulse duration and frequency: Short-duration, high-frequency pulses produce finer surface finishes critical for sealing surfaces in hydraulic valve components.
• Dielectric fluid management: Deionized water for WEDM and hydrocarbon oils for sinker EDM require precise conductivity control to maintain arc stability across varying material resistivities.
• Wire tension and feed rate: Critical for dimensional accuracy in WEDM of carbide parts where uneven thermal loads can deflect the wire path.

The recast layer—an unavoidable byproduct of EDM—must be managed through post-process lapping or precision grinding for applications demanding fatigue resistance or biocompatibility.

The ODM and Supply Chain Advantage

For global OEM buyers and Tier 1 suppliers, sourcing EDM-processed hard material components presents unique supply chain challenges: few manufacturers combine material science expertise, advanced EDM capabilities, and the quality management systems required for mission-critical applications. This is precisely where Dixin Technology differentiates itself as a supply chain integrator and ODM solution provider.

Vertically Integrated Manufacturing Control

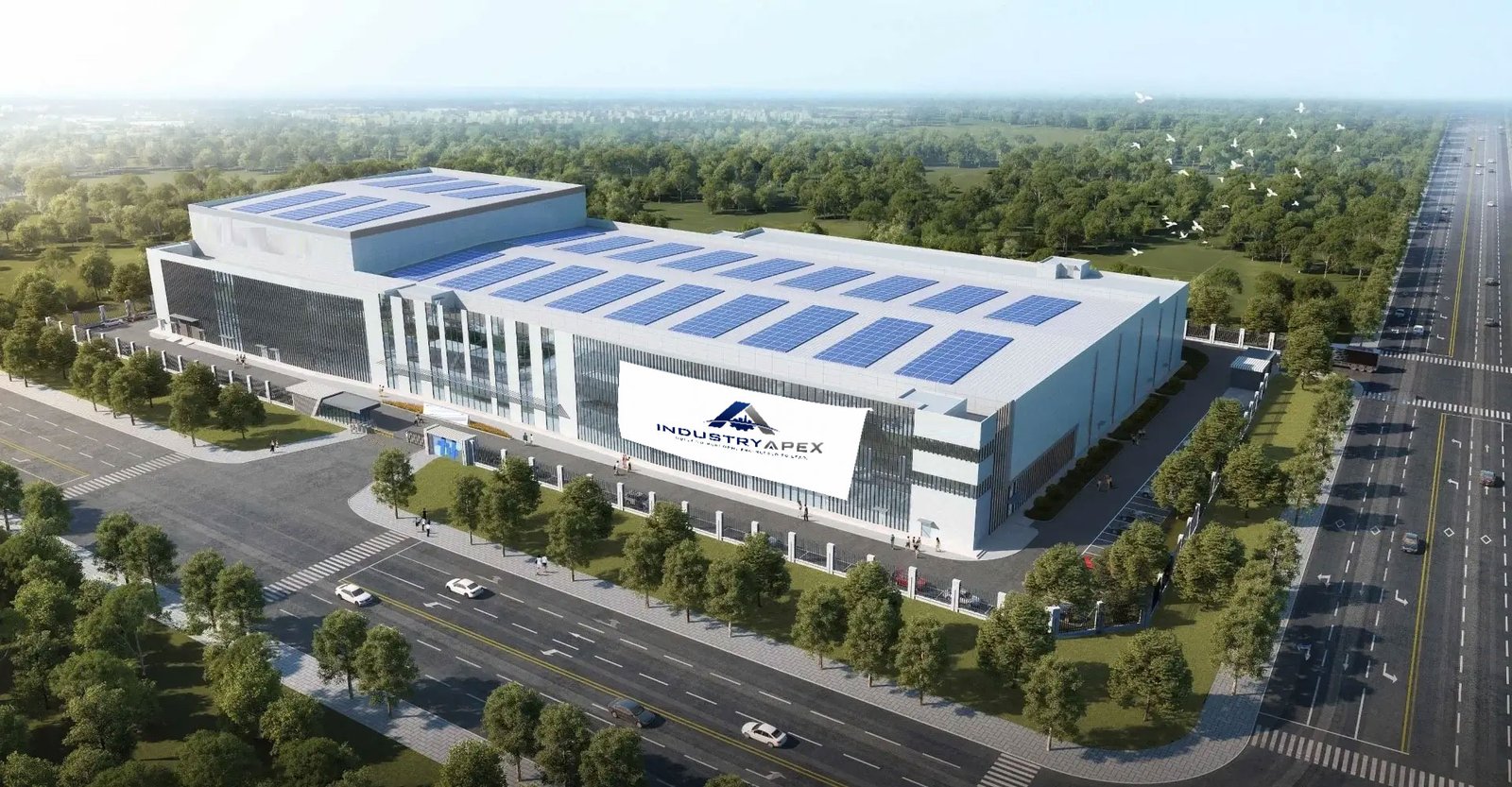

Dixin Technology operates a fully controlled precision manufacturing system spanning the complete process chain—from raw material sourcing through CNC rough machining, EDM finishing, precision grinding, inspection, and packaging. This vertical integration eliminates multi-vendor coordination risks and compresses lead times by 30–45% compared to fragmented supply chain approaches. An enterprise-grade ERP system tracks every component through each manufacturing stage, providing full traceability documentation essential for aerospace and medical certification compliance.

Over 30 Years of Hard Material Expertise

With more than three decades of precision machining experience, Dixin Technology has developed proprietary process knowledge for EDM and wire cutting across the full spectrum of hard and brittle substrates: tungsten carbide (grades from K10 to K40), engineering ceramics (alumina, zirconia, silicon carbide), hardened tool steels (D2, M2, H13 at 62+ HRC), and conductive ceramic composites. This deep institutional knowledge translates directly into first-pass yield rates exceeding 98% and significantly reduced engineering iteration cycles for new product introductions.

Multi-Technology Manufacturing Platform

EDM and wire cutting do not exist in isolation—they integrate within a broader precision manufacturing ecosystem. Dixin Technology’s capabilities span 3-axis through 5-axis CNC machining, precision surface and cylindrical grinding, and specialized industrial ceramics processing. This multi-technology platform allows engineers to design optimal process routines that combine technologies for maximum efficiency. A tungsten carbide hydraulic spool, for example, might undergo CNC turning for bulk geometry, wire EDM for slot features, sinker EDM for internal ports, and centerless grinding for final OD tolerance.

Engineering Partnership Model

Rather than functioning as a build-to-print job shop, Dixin Technology engages as an engineering partner from the design phase. DFM (Design for Manufacturability) consultation helps OEM engineers optimize geometries for EDM processability—reducing electrode count, minimizing re-positioning operations, and specifying achievable tolerances that balance performance requirements with manufacturing economics. This collaborative approach serves the needs of global OEM procurement teams and Tier 1 engineering organizations seeking long-term strategic suppliers rather than transactional vendors.

Industry Applications

Aerospace and Defense

Turbine engine components, fuel system parts, and actuator housings frequently incorporate hardened alloys and carbide wear surfaces that demand EDM processing. Wire-cut EDM produces complex cooling hole geometries in nickel superalloy turbine blades, while sinker EDM creates precise fir-tree root forms in hardened discs. Dixin Technology supports aerospace CNC machining programs with full material certification and AS9100-aligned process controls.

Medical Devices and Surgical Instruments

Biocompatible ceramics and hardened stainless steels used in medical implants and surgical instruments benefit from EDM’s stress-free material removal. Micro-EDM drilling produces sub-0.5 mm holes in ceramic femoral heads, while wire EDM profiles complex cutting edges on hardened surgical blades without thermal distortion that could compromise sterility or biocompatibility.

Hydraulic and Fluid Power Systems

High-pressure hydraulic systems demand extreme dimensional precision on hardened valve spools, sleeves, and pump components. EDM enables the creation of metering edges, cross-holes, and complex port geometries in carbide and hardened steel substrates where conventional drilling would produce unacceptable burrs or positional errors. Dixin Technology’s hydraulic pump parts division applies EDM finishing to achieve the 1–2 µm clearances critical for leak-free high-pressure operation.

Semiconductor and Electronics Manufacturing

Wafer handling components, die bonding tools, and probe card elements increasingly utilize ceramic and carbide materials for wear resistance and thermal stability. Wire EDM and micro-EDM enable the intricate features required at semiconductor-grade precision levels, producing components with positional accuracies measured in single-digit microns.

Tooling and Die Manufacturing

Perhaps the most established EDM application domain, progressive die components, carbide punches, forming tools, and injection mold cores rely on sinker and wire EDM for feature creation that would otherwise require hours of manual grinding by skilled toolmakers. Modern automated EDM cells process these components with minimal operator intervention, delivering consistent quality at production volumes.

Partner with Dixin Technology for Your Hard Material EDM Requirements

Whether your application demands tungsten carbide pump components with sub-micron sealing surfaces, ceramic medical device elements with complex internal features, or hardened aerospace parts requiring zero-stress material removal, Dixin Technology provides the technical depth and supply chain reliability that global OEM programs require.

Our engineering team is prepared to review your drawings, recommend optimal EDM process strategies, and deliver prototype-to-production solutions under one quality management system. With over 30 years of hard material machining expertise, a fully integrated manufacturing platform, and ERP-driven traceability, we compress your supply chain while elevating component quality.

Contact Dixin Technology today to discuss your EDM and wire cutting requirements for hard and brittle material applications. Let our engineering team demonstrate how vertically integrated ODM manufacturing delivers measurable advantages for your next precision component program.
